Single Door Magnetic Lock
These surface-mounted electromagnetic locks offer strong holding forces of 280kg and 500kg respectively, ensuring secure locking for wooden, glass, metal, and fireproof doors. Designed with door signal output and power-off-to-open safety, they support both 12V and 24V input options.
Description
Models Specifications
SWC-280ASW
SWC-500ASW

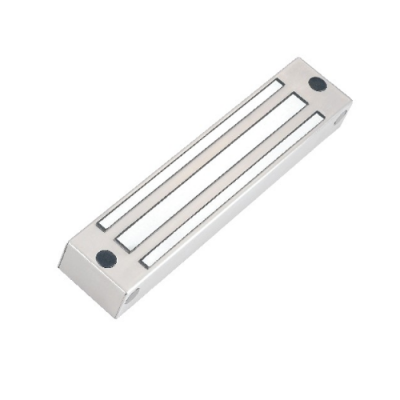

SWC-280ASW
| Model | SWC-280ASW |
| Lock Size | 210L × 24W × 28.5H (mm) |
| Armature Plate Size | 185L × 30W × 12H (mm) |
| Holding Force | 280kg (600Lbs) |
| Door Signal | Yes |
| Lock Signal | No |
| Input Voltage | DC12V or DC24V |
| Working Current | 12V/480mA or 24V/220mA |
| Door Type | Wooden/Glass/Metal/Fireproof |
| Security Type | Power off to open |
| Weight | 2.3kg |

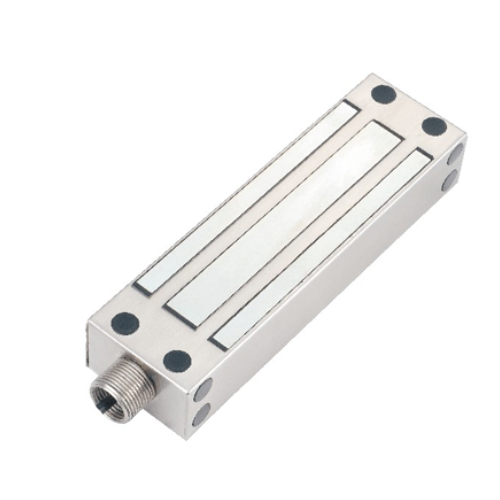

SWC-500ASW
| Model | SWC-500ASW |
| Lock Size | 240L × 8.5W × 43H (mm) |
| Armature Plate Size | 185L × 6W × 16H (mm) |
| Holding Force | 500kg (1200Lbs) |
| Door Signal | Yes |
| Lock Signal | No |
| Input Voltage | DC12V or DC24V |
| Working Current | 12V/480mA or 24V/220mA |
| Door Type | Wooden/Glass/Metal/Fireproof |
| Security Type | Power off to open |
| Weight | 5kg |
