M-Bio

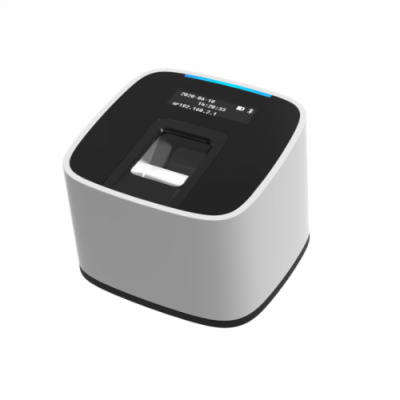

M-bio is a portable fingerprint and RFID Time & Attendance terminal featuring Anviz next generation AFOS touch active fingerprint sensor and rechargeable Li-ion Battery. Standard with Wi-Fi and Bluetooth function, supports CrossChex Cloud and CrossChex Mobile APP. Meanwhile, the M-bio based on embedded Linux system platform has internal Web Server to self-management of the device.
Description
Specifications
Specifications
| Product Name | M-Bio |
| Identification Mode | Finger, Card |
| RFID Options | 125kHz EM & 13.56MHz MIFARE |
| Max. Users | 3,000 |
| Max. Cards | 3,000 |
| Max. Logs | 100,000 |
| Time Attendance Mode | – |
| Group, Time Zone | – |
| Work Code | – |
| WebServer | Yes |
| Record Auto Inquiry | – |
| Daylight Saving | – |
| Voice Prompt | Voice |
| Multiple Language | – |
| Software | CrossChex Standard & CrossChex Cloud |
| Sensor | AFOS Touch Active Sensor |
| Display | 1.18″ OLED |
| Keypad | – |
| Dimensions(W x H x D) | 60x60x50mm (2.36″x2.36″x1.97″) |
| Working Temperature | -10°C~60°C (14°F~140°F) |
| Humidity | 20% to 90% |
| Power Input | USB |
| Battery | Yes |
| TCP/IP | – |
| RS485 | – |
| USB Host | – |
| Wi-Fi | Standard |
| Bluetooth | Standard |
| 4G | – |
| Relay | – |
| I/O | – |
| Tamper Alarm | – |
| Anti-pass back | – |
| Wiegand | – |
