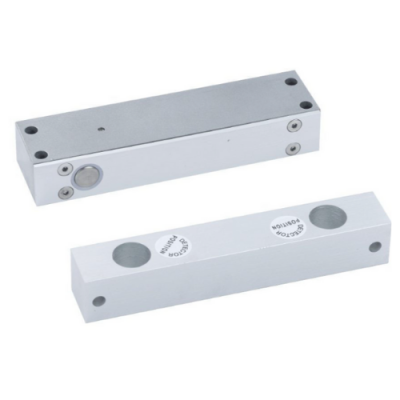

Narrow Panel Electric Bolt Lock(Short Panel)
The Narrow Panel Electric Bolt Lock features a compact design ideal for slim frames. With signal output, time delay, and 12V DC operation, it secures wooden, glass, metal, and fireproof doors using a “locked when energized” mechanism.
Description
Models Specifications
SWC/DB86DST
SWC/DB86DST
| Model | SWC/DB86DST |
| Product Type | Narrow Panel Electric Bolt Lock(short panel) |
| Lock Size | 148.5×24.5×39(mm) |
| Strike | 148.5×24.5×20(mm) |
| Input Voltage | DC 12V ± 10% |
| Start Current | 950mA |
| Working Current | 80mA |
| Door Type Applicable | Wooden door, Glass door, Metal door, Fireproof door |
| Time Delay | Yes |
| Signal output | Yes |
| Security Type | Locked when energized |
| Weight | 0.86KG |
