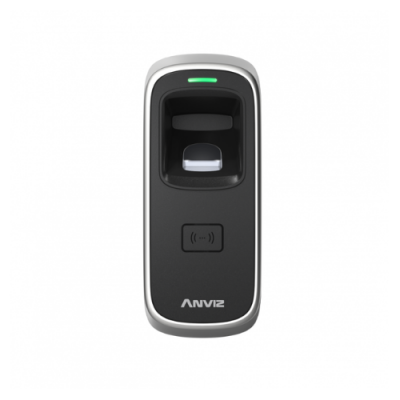

M5 Plus
M5 Plus is new generation outdoor professional access control device. With fast linux based 1Ghz CPU, and latest BioNANO® fingerprint algorithm, M5 plus ensures a less than 0.5 second comparison time under 1:3000 status.
Description
Specifications
Specifications
| Product Name | M5 Plus |
| Identification Mode | Finger, Card |
| RFID Options | 125KHz EM(Standard), 13.56MHz MIFARE(Optional) |
| Max. Users | 3,000 |
| Max. Cards | 3,000 |
| Max. Logs | 50,000 |
| Group, Time Zone | 16 groups, 32 time zones |
| Web Server | Yes |
| Voice Prompt | Buzzer |
| Multiple Language | – |
| Software | CrossChex Standard |
| CPU | Linux 1.0 GHz |
| Sensor | AFOS Touch Active Sensor |
| Scanning Area | 22mmx18mm (9.87″x0.71″) |
| Display | – |
| Keypad | – |
| Dimensions(W x H x D) | 50x12x4x34.5mm (1.97″x4.88″x1.36″) |
| Working Temperature | -30°C~60°C (-22°F~140°F) |
| Humidity | 20% to 90% |
| PoE | – |
| Power Input | DC12V |
| Protection Class | IP65, IK10 |
| TCP/IP | Yes |
| RS485 | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Relay | Yes |
| I/O | Door Contact/Exit Button |
| Tamper Alarm | Yes |
| Anti-pass Back | Yes |
| Wiegand | Output |
