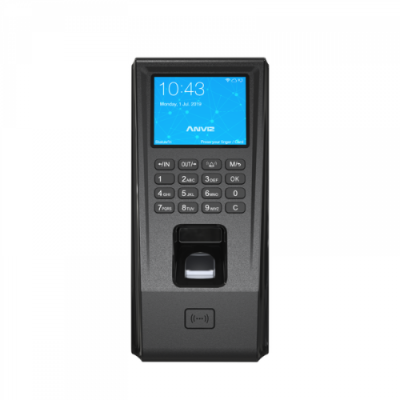

EP30
EP30 is a new-generation IP-based access control terminal. With a fast, Linux-based 1.0Ghz CPU and the latest BioNANO® fingerprint algorithm, EP30 ensures a less than 0.5 second comparison time under 1:3000 status.
Description
Specifications
Specifications
| Product Name | EP30 |
| Identification Mode | Finger, Password, Card |
| RFID Options | 125kHz EM (Optional) 13.56MHz MIFARE (Optional) |
| Max. Users | 3,000 |
| Max. Cards | 3,000 |
| Max. Logs | 100,000 |
| Time Attendance Mode | 8 |
| Group, Time Zone | 16 groups, 32 time zones |
| Work Code | 6 digits |
| WebServer | Yes |
| Record Auto Inquiry | Yes |
| Daylight Saving | Yes |
| Voice Prompt | Voice |
| Multiple Language | Yes |
| Software | CrossChex Standard & CrossChex Cloud |
| Sensor | AFOS Touch Active Sensor |
| Display | 3.5″ TFT LCD |
| Keypad | Physical Button |
| Dimensions(W x H x D) | 165x76x35mm (6.50″x2.99″x1.38″) |
| Working Temperature | -10°C~60°C (14°F~140°F) |
| Humidity | 20% to 90% |
| Power Input | DC12V |
| Battery | – |
| TCP/IP | Yes |
| RS485 | Yes |
| USB Host | – |
| Wi-Fi | Optional |
| Bluetooth | – |
| 4G | – |
| Relay | Yes |
| I/O | Door Contact/Exit Button |
| Tamper Alarm | Yes |
| Anti-pass back | Yes |
| Wiegand | Output |
