Electromechanical Drop Bolt

  • Overview


Overview

PRODUCT VE1260

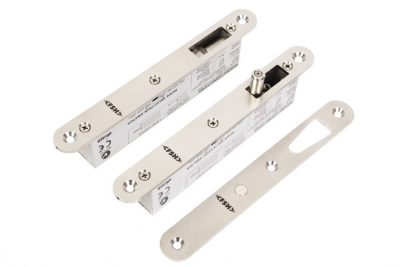

The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180 degree swing through doors.
The VE1260 is considered a "Green Product as it consumes an inrush current of 290mA @ 12VDConly during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA @ 12VDC.
A series of additional Strike Plates allow for door misalignment of up to +12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.


PART No.

VE1260

FUNCTION

Mortice Mount, power-to-lock/power-to-release field interchangeable,

up to 35kg of Pre-Load capability, unlocking and up to 6.5kg locking

HOLDING STRENGTH

Up to 1000kg

VOLTAGE/CURRENT

Multi Voltage 12-30VDC

Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the side load.

More side load = more current. See preload vs. current graph.
Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA)

APPROVALS

CE

C-Tick

Fire rated in accordance with AS1905.1.2005 Part 1 to up to 4 hours on fire door assemblies

MONITORING

Lock Status Sensor of the internal locking mechanism

Door Status Sensor Built-in Reed Switch, monitoring the door position

ENVIROMENTAL

Operational Temperature Range -20 to +60C

DURABILITY

PRODUCT VE1260

HIGH SECURITY MOTORISED DROP BOLT WITH PRE-LOAD CAPABILITY EcoLock

VE1260 EcoLock MG 4931

PRODUCT DESCRIPTION

The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180 degree swing through doors.

The VE1260 is considered a "Green Product as it consumes an inrush current of 290mA @ 12VDConly during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA @ 12VDC.

A series of additional Strike Plates allow for door misalignment of up to +12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.

An optional LED red/green indicator unit is available.


TECHNICAL DETAILS

PART No.

VE1260

FUNCTION

Mortice Mount, power-to-lock/power-to-release field interchangeable,

up to 35kg of Pre-Load capability, unlocking and up to 6.5kg locking

HOLDING STRENGTH

Up to 1000kg

VOLTAGE/CURRENT

Multi Voltage 12-30VDC

Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the side load.

More side load = more current. See preload vs. current graph.
Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA)

APPROVALS

CE

C-Tick

Fire rated in accordance with AS1905.1.2005 Part 1 to up to 4 hours on fire door assemblies

MONITORING

Lock Status Sensor of the internal locking mechanism

Door Status Sensor Built-in Reed Switch, monitoring the door position

ENVIRONMENTAL

Operational Temperature Range -20 to +60C

DURABILITY

PRODUCT VE1260

HIGH SECURITY MOTORISED DROP BOLT WITH PRE-LOAD CAPABILITY EcoLock

VE1260 EcoLock MG 4931

PRODUCT DESCRIPTION

The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180 degree swing through doors.

The VE1260 is considered a "Green Product as it consumes an inrush current of 290mA @ 12VDConly during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA @ 12VDC.

A series of additional Strike Plates allow for door misalignment of up to +12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.

An optional LED red/green indicator unit is available.


TECHNICAL DETAILS

PART No.

VE1260

FUNCTION

Mortice Mount, power-to-lock/power-to-release field interchangeable,

up to 35kg of Pre-Load capability, unlocking and up to 6.5kg locking

HOLDING STRENGTH

Up to 1000kg

VOLTAGE/CURRENT

Multi Voltage 12-30VDC

Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the side load.

More side load = more current. See preload vs. current graph.
Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA)

APPROVALS

CE

C-Tick

Fire rated in accordance with AS1905.1.2005 Part 1 to up to 4 hours on fire door assemblies

MONITORING

Lock Status Sensor of the internal locking mechanism

Door Status Sensor Built-in Reed Switch, monitoring the door position

ENVIRONMENTAL

Operational Temperature Range -20 to +60C

DURABILITY

Exceeding Australian Standard AS4145.2-2008

400,000 operating cycles

Durability D7

STRENGTH

Meeting Australian Standard AS4145.2-2008

Static Strength S8

Impact Strength S8

MAXIMUM DOOR GAP

8mm

DOOR MISALIGNMENT

Standard Strike Plate + 4mm Special Strike Plate up to + 12mm

PRODUCT DB1260 SERIES

The DB1260 is designed for installation on narrow frame swing doors, and/or glass door mounting. The drop bolt body depth of 35mm will fit into a 44mm depth door frame. The drop bolt is available in either "Power To Lock" or "Power To Release" format.


PART No.

DB1260PTO (Power To Release)



DB1260PTL (Power To Lock)

FUNCTION

Slimline mortise mount drop bolt

HOLDING STRENGTH

Up to 300kg

VOLTAGE/CURRENT

12VDC 1.15A(in-rush) 250mA holding

APPROVALS

4 hour fire rated to A.S. and B.S. standards

MONITIORING

Door sensor

Remote release

Bi-coloured LED

Audible tone

ENVIROMENTAL

L= 210 x W= 25 x D= 35mm
