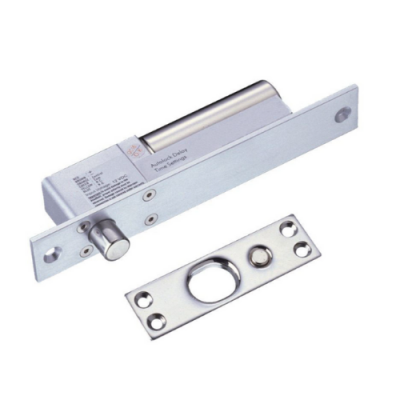

Electric Bolt Lock with Signal Output
The SWC/DB82DS series Electric Bolt Locks feature signal output and adjustable time delay, enhancing security and monitoring. Designed for wooden, glass, metal, and fireproof doors, they operate on 12V DC with a “locked when energized” mechanism for dependable protection.
Description
Models Specifications
SWC/DB82DS
SWC/DB82DST
SWC/DB82DS
| Model | SWC/DB82DS |
| Product Type | Electric Bolt Lock with Signal Output |
| Lock Size | 205Lx35Wx40(mm) |
| Strike | 90Lx25x2(mm) |
| Input Voltage | DC 12V ± 10% |
| Start Current | 950mA |
| Working Current | 110mA |
| Door Type Applicable | Wooden door, Glass door, Metal door, Fireproof door |
| Time Delay | Yes |
| Signal output | Yes |
| Security Type | Locked when energized |
| Weight | 0.72KG |
SWC/DB82DST
| Model | SWC/DB82DST |
| Product Type | Electric Bolt Lock with Signal Output |
| Lock Size | 205Lx35Wx40(mm) |
| Strike | 90Lx25x2(mm) |
| Input Voltage | DC 12V ± 10% |
| Start Current | 950mA |
| Working Current | 110mA |
| Door Type Applicable | Wooden door, Glass door, Metal door, Fireproof door |
| Time Delay | Yes |
| Signal output | Yes |
| Security Type | Locked when energized |
| Weight | 0.72KG |
