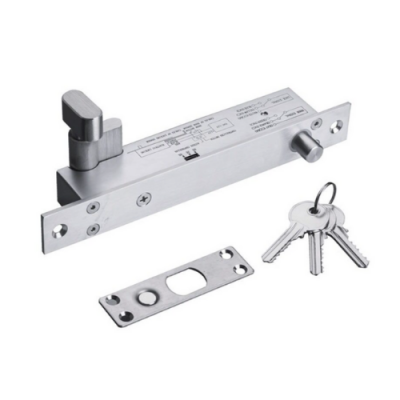

Electric Bolt Lock with Keys
The Electric Bolt Lock with Keys combines key access with electronic control. Featuring signal output, time delay, and a fail-secure “unlocked when energized” design, it ensures reliable security for wooden, glass, metal, and fireproof doors using 12V DC power.
Category: ELECTRIC LOCKS
Request Quote Description
Models Specifications
SWC/DB88DST
SWC/DB88DST
| Model | SWC/DB88DST |
| Product Type | Fail Safe Electric Bolt is for Fully Frameless Glass Door |
| Lock Size | 148x43x39(mm) |
| Strike | 148x43x25(mm) |
| Input Voltage | DC 12V ± 10% |
| Start Current | 950mA |
| Working Current | 80mA |
| Door Type Applicable | Wooden door, Glass door, Metal door, Fireproof door |
| Time Delay | Yes |
| Signal output | Yes |
| Security Type | Locked when energized |
| Weight | 1.6KG |
