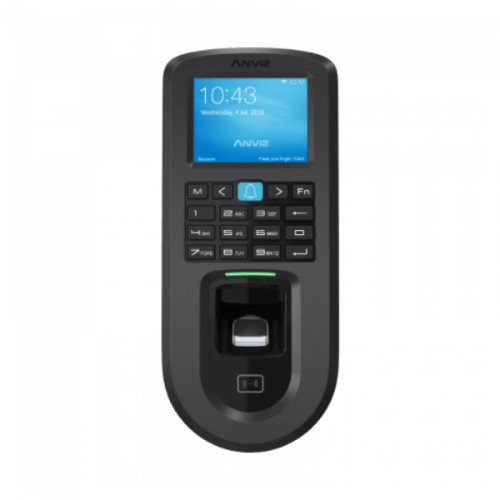

VF30 Pro
VF30 pro is the new generation standalone access control reader equipped with Linux based 1Ghz processor, 2.4″ TFT LCD screen and flexible POE and WIFI communication. VF30 pro also supports webserver function ensuring easily self management and professional standalone access control interfaces. An standard EM card reader is also equipped onto the device.
Description
Specifications
Specifications
| Product Name | VF30 Pro |
| Identification Mode | Finger, Password, Card |
| RFID Options | 125kHz EM (Standard), 13.56MHz MIFARE (Optional) |
| Max. Users | 3,000 |
| Max. Cards | 3,000 |
| Max. Logs | 100,000 |
| Time Attendance Mode | 8 |
| Group, Time Zone | 16 groups, 32 time zones |
| Work Code | 6 digits |
| WebServer | Yes |
| Record Auto Inquiry | Yes |
| Daylight Saving | Yes |
| Voice Prompt | Voice |
| Multiple Language | Yes |
| Software | CrossChex Standard & CrossChex Cloud |
| Sensor | AFOS Touch Active Sensor |
| Display | 2.4″ TFT LCD |
| Keypad | Physical Button |
| Dimensions(W x H x D) | 80x180x40mm (3.15″x7.09″x1.57″) |
| Working Temperature | -10°C~60°C (14°F~140°F) |
| Humidity | 20% to 90% |
| Power Input | DC12V & PoE IEEE802.3af/at |
| Battery | – |
| TCP/IP | Yes |
| RS485 | Yes |
| USB Host | – |
| Wi-Fi | Optional |
| Bluetooth | – |
| 4G | – |
| Relay | Yes |
| I/O | Door Contact/Exit Button/Bell |
| Tamper Alarm | Yes |
| Anti-pass back | Yes |
| Wiegand | IN & OUT |
