Infrared Exit Sensor Button
The SWC PBT98IR is a touchless infrared exit switch with a 0.1–10cm detection range, ideal for hollow doors. Featuring NO/NC/COM output, a 3A @ 36VDC rating, and 500,000-cycle durability, it ensures reliable, hygienic access in high-traffic environments.
Category: PUSH BUTTON
Request Quote Description
Models Specifications
SWC PBT97IR
SWC PBT98IR

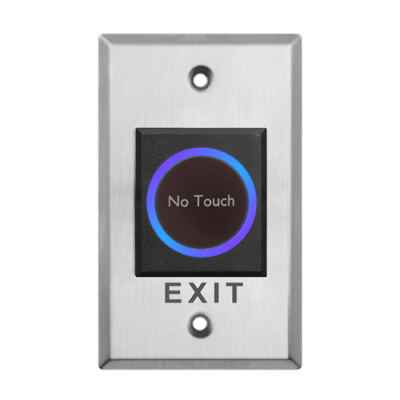

SWC PBT97IR
| Model | SWC PBT97IR |
| Dimensions | 115Lx70Wx29H(mm) |
| Input Voltage | DC12V±10% |
| Contact Rating | 3A@36VDC Max |
| Output Contact | NO/NC/COM |
| Mechanical Life | 500000 tested |
| Door Type Applicable | Hollow Door |
| Weight | 0.16kg |
| Detection Range | – |
| Suitable Humidity | – |

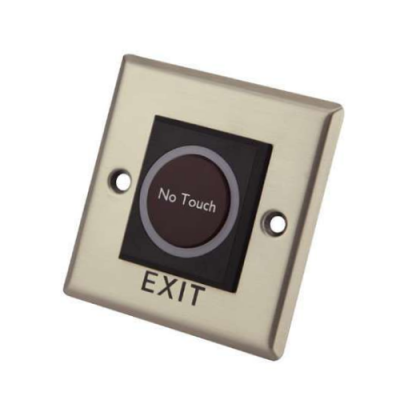

SWC PBT98IR
| Model | SWC PBT98IR |
| Dimensions | 86Lx86Wx29H(mm) |
| Input Voltage | DC12V±10% |
| Contact Rating | 3A@36VDC Max |
| Output Contact | NO/NC/COM |
| Mechanical Life | 500000 tested |
| Door Type Applicable | Hollow Door |
| Weight | 0.2kg |
| Detection Range | 0.1-10cm |
| Suitable Humidity | 0-95% (relative humidity) |
