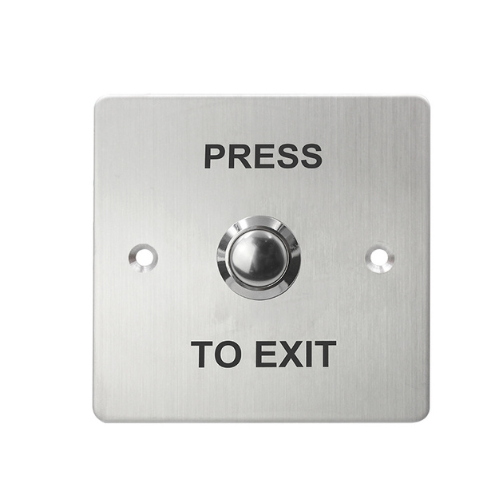

Stainless Steel Exit Button
The SWC–PBT94S is a compact, durable push button switch with an aluminum panel and steel button. Designed for hollow doors and embedded electric cases, it supports 3A @ 36VDC output and ensures reliability with a 500,000-cycle mechanical life.
Description
Models Specifications
SWC-PBT94S
SWC-PBT94S
| Model | SWC –PBT94S |
| Dimensions | 86L x 86W x 20H (mm) |
| Standard Structure | Aluminum Panel, Steel Button |
| Input Voltage | DC12V ±10% |
| Optional Accessory | – |
| Operating Temp | – |
| Panel Material | – |
| Safe Type | – |
| Operating Humidity | – |
| Contact Rating | 3A @ 36VDC Max |
| Output Contact | NO/COM |
| Mechanical Life | 500,000 cycles tested |
| Door Type Applicable | Hollow Door and embedded electric case |
| Weight | 0.15kg |
