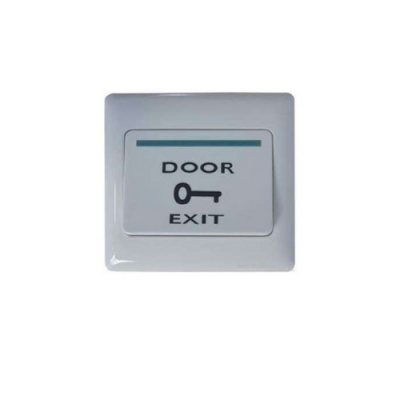

Plastic Door Exit Button
The SWC–PBT-P9 is a lightweight push button switch with a durable plastic panel and button. Designed for embedded electric cases, it offers NO/COM output, a 3A @ 36VDC rating, and a tested mechanical life of 500,000 cycles.
Description
Models Specifications
SWC-PBTP9
SWC-PBTP9
| Model | SWC –PBT-P9 |
| Dimensions | 86Lx86Wx32H(mm) |
| Standard Structure | Plastic Panel, Plastic Button |
| Input Voltage | DC12V±10% |
| Current Rating | 3A@36VDC Max |
| Output Contact | NO/COM |
| Mechanical Life | 500000 tested |
| Door Type Applicable | Embedded Electric Case |
| Weight | 0.064kg |
