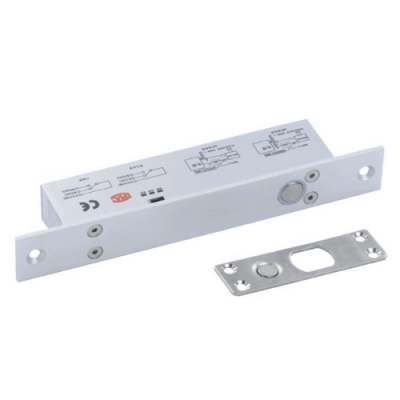

Narrow Panel Electric Bolt Lock(Long Panel)
The Long Panel Narrow Electric Bolt Lock offers reliable security for narrow-framed wooden, glass, metal, and fireproof doors. Featuring signal output, time delay, and low power 12V DC operation, it ensures dependable access control with “locked when energized” safety.
Description
Models Specifications
SWC/DB87DST
SWC/DB87DST
| Model | SWC/DB87DST |
| Product Type | Narrow Panel Electric Bolt Lock(Long Panel) |
| Lock Size | 200x28x39(mm) |
| Strike | 90x25x2(mm) |
| Input Voltage | DC 12V ± 10% |
| Start Current | 950mA |
| Working Current | 80mA |
| Door Type Applicable | Wooden door, Glass door, Metal door, Fireproof door |
| Time Delay | Yes |
| Signal output | Yes |
| Security Type | Locked when energized |
| Weight | 0.72KG |
