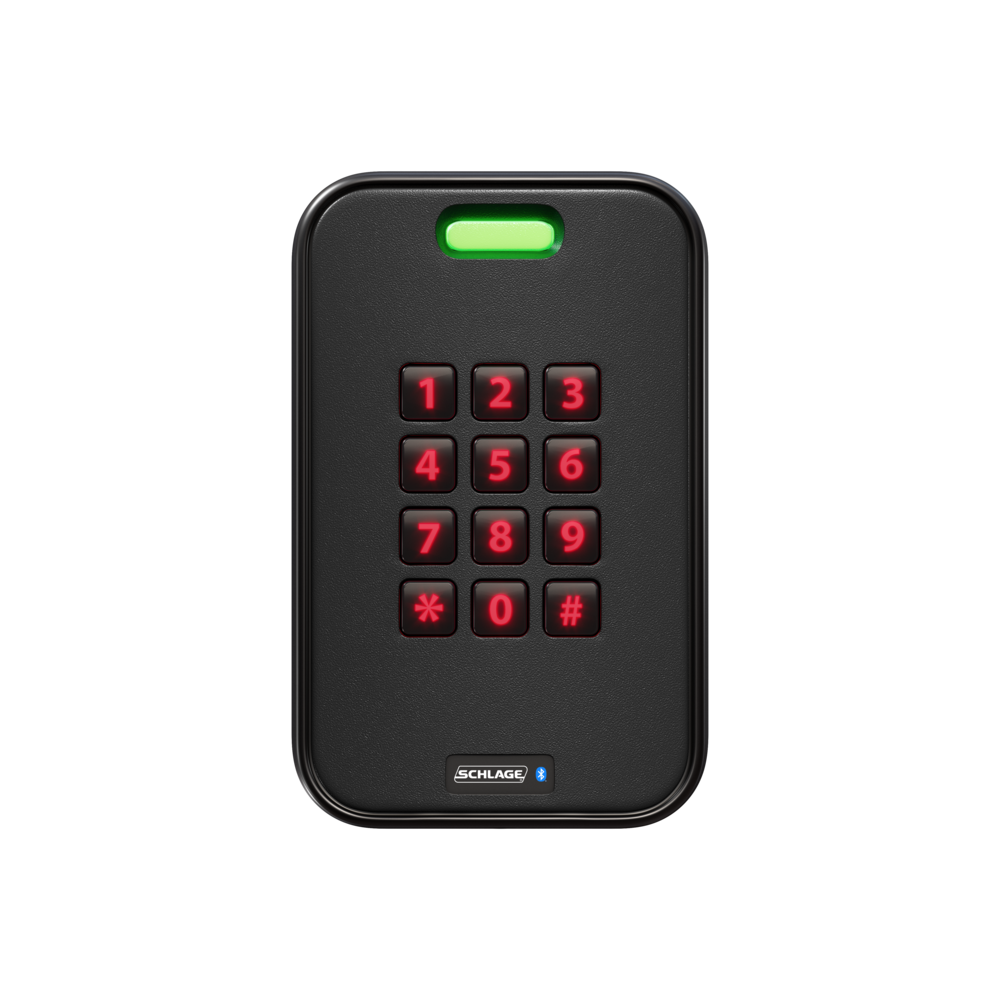

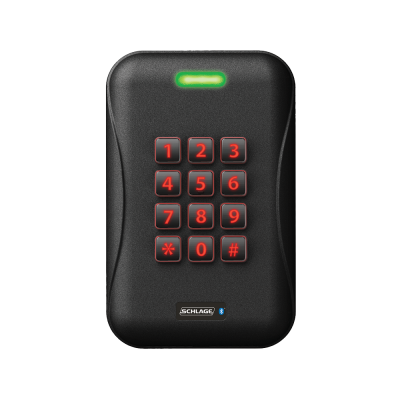

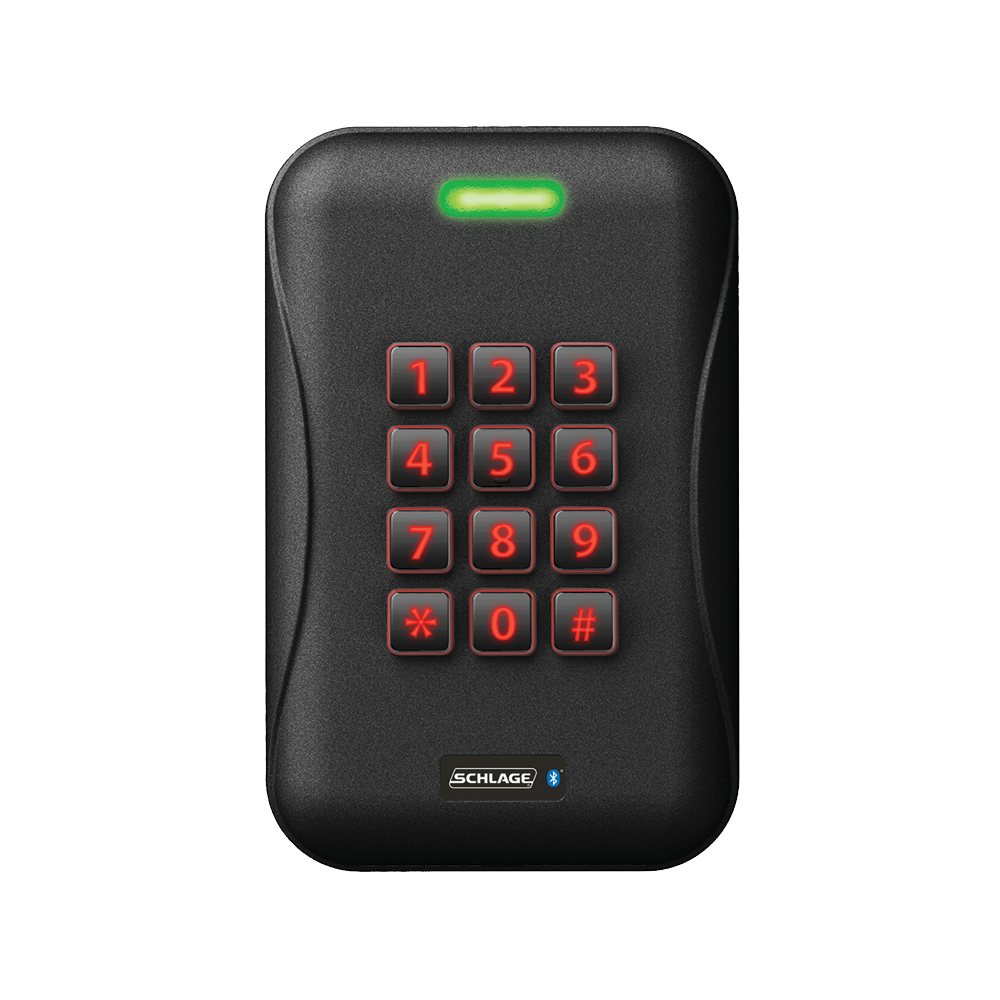

MTKB15 Mobile Enabled Multi-Technology Wall Reader with Keypad
Mobile ready Schlage® MTB readers deliver maximum capabilities and compatibility in one single unit for simplified access control. The MTKB15 wall mount is designed to support a wide variety of technologies including Bluetooth® (BLE), NFC, keypad, proximity and smart, allowing a seamless transition to more secure credentials at customers’ own pace. The ability to pair keypad use for multi-factor authentication provides even higher security in any facility.
Category: SCHLAGE
Request Quote Description
Specifications
Specifications
Specification | Details |
---|---|
Physical dimensions (HxWxD) | 5.1″ x 3.25″ x 0.76″ |
Frequency | 2.4GHz, 13.56 MHz and 125 kHz |
System interface | Wiegand / Clock & Data / OSDP / Optional RS-485 capability |
Standard default PIV output | 75 bit† |
Standards | ISO 14443A, ISO 15693 |
Power | 5–28 VDC |
Wiring | 22 AWG, 12 conductor, 12″ length |
Operating temperatures | -31° to 151°F (-35° to 67°C) |
LED | Red, green, or amber visual indicator and audio feedback |
Material | PBT Polymer |
