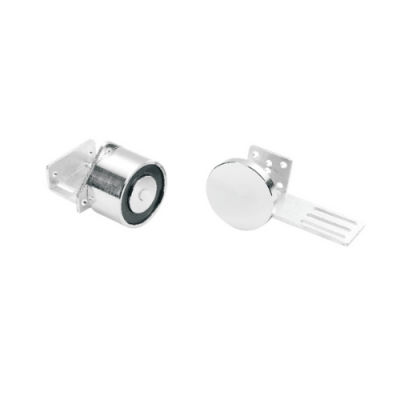

Magnetic Lock For Auto-Door
Compact and efficient, this magnetic lock for auto-doors provides a 50kg holding force with fail-safe security. Designed for smooth automatic operation, it runs on DC12V (optional 24V) with low current consumption—ideal for lightweight access control solutions.
Category: ELECTRIC LOCKS
Request Quote Description
Models Specifications
SWC-DC51
SWC-DC51
| Model | SWC-DC51 |
| Lock Size | 80L x 80W x 40H (mm) |
| Armature Plate Dimension | 100L x 53W x 53H (mm) |
| Holding Force | 50kg (110Lbs) |
| Optional | No |
| Lock Signal | No |
| Input Voltage | DC12V (DC24V need order) |
| Working Current | 12V/140mA (24V/70mA) |
| Door Type Applicable | Auto-door |
| Security Type | Power off to open |
| Weight | 0.8kg |
