Overview

Electro Magnetic Locks are locking devices that consist of an electromagnetic core (constructed of a laminated steel-core surrounded with hundreds of turns of copper wire) and an armature plate (carbon free steel plate).



By attaching the electromagnet to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the door locked. Electro Magnetic Locks have no interconnecting mechanical parts and therefore require constant power.



FSH Electro Magnetic Locks are of highest quality and come with a Lifetime Warranty.



FSH also features the new revolutionary low current EcoMag product line.

Key features

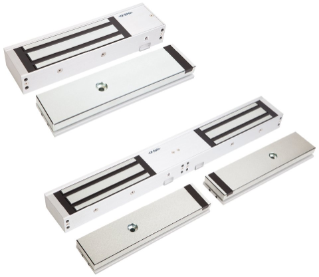

PRODUCT ECO5700M

The patented ECO5700M model is a power saving Electro-Magnetic Lock.
Under normal, non-alarm conditions, the ECO5700M "EcoMag" operates in a low current `Sleeping Mode of 70mA @ 24V with a holding force of 340kg. In the event of an unauthorised attempt to open the door, the ECO5700M "EcoMag "wakes up and goes into an Alarm Mode with full current of 300mA @ 24V applied to the device, instantly increasing the holding force to up to 680kg.
The EcoMag operates on multi voltage 10-26VDC, provides an Early Warning (EW) signal output, has a built-in local Alarm Buzzer, with full monitoring of Lock Status and Door Status, long distance Light Panel indicator and an Exit Switch Delay function.
This device is provided with the FSH patented Anti-Tamper-Plate as standard.


PART No.

ECO5700M

FUNCTION

Power To Lock (Fail Safe)

HOLDING STRENGTH

Up to 680kg in Alarm-Mode

340kg in Sleep-Mode

VOLTAGE/CURRENT

Multi Voltage 10-26VDC

Sleep-Mode: 12VDC=140mA/24VDC=70mA

Alarm-Mode: 12VDC=600mA/24VDC=300mA

MONITORING

Addressable Armature Plate

Door Status Monitoring Sensor (DSS)

Lock Status Monitoring Sensor (LSS)

Early Warning Signial Output and Local Alarm Buzzer (EW)

Exit Switch Delay Function

Long Distance Light Panel (LP)

SIZE

Magnet: L= 268 W= 40 D= 73mm

Armature Plate: L= 209 W= 6.2 D= 66mm

PRODUCT ECO3500M

The patented ECO3500M model is a power saving Electro-Magnetic Lock. Under normal, non-alarm conditions, the ECO3500M "EcoMag" operates in a low current `Sleeping Mode of 60mA @ 24V with a holding force of 100kg. In the event of an unauthorised attempt to open the door, the ECO3500M "EcoMag "wakes up and goes into an Alarm Mode with full current of 300mA@24V applied to the device, instantly increasing the holding force to up to 280kg.
The EcoMag operates on multi Voltage 10-26VDC, provides an Early Warning (EW) signal output, has a built-in local Alarm Buzzer, with full monitoring of Lock Status and Door Status, long distance Light Panel indicator.
The device comes with the FSH patented Anti-Tamper-Plate as standard.


PART No.

ECO3500M

FUNCTION

Power To Lock (Fail Safe)

HOLDING STRENGTH

Up to 280 kg in Alarm-Mode

100kg in Sleep-Mode

VOLTAGE/CURRENT

Multi Voltage 10-26VC

Sleep-Mode: 12VDC=120mA / 24VDC=60mA

Alarm-Mode: 12VDC=600mA / 24VDC=300mA

MONITORING

Door Status Monitoring Sensor (DSS)

Lock Status Monitoring Sensor (LSS)

Early Warning Signial Output and Local Alarm Buzzer (EW)

Long Distance Light Panel (LP)

SIZE

Magnet: L=238 W=48 D=24mm

Armature Plate: L=185 W=38 D=12mm
