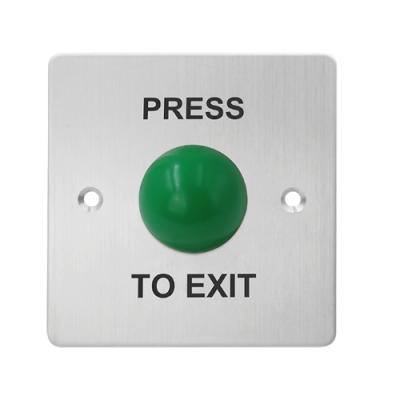

Door Release Button
The SWC PBT95S is a robust push button switch with a polished zinc alloy panel and steel button. Suitable for hollow doors, it offers NO/NC/COM output, 3A @ 36VDC rating, and reliable performance across 500,000 cycles in varied conditions.
Description
Models Specifications
SWC PBT95S
SWC PBT95S
| Product | SWC PBT95S |
| Size | 88L × 88W × 54H (mm) |
| Standard Structure | Aluminium Steel Button |
| Current Rating | 3A @ 36VDC Max |
| Output Contact | NO/NC/COM |
| Mechanical Life | 500,000 cycles tested |
| Suitable for Door | Hollow Door |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 0-95% (relative humidity) |
| Panel Material | Zinc alloy (polished and chromed finish) |
| Weight | 0.50kg |
