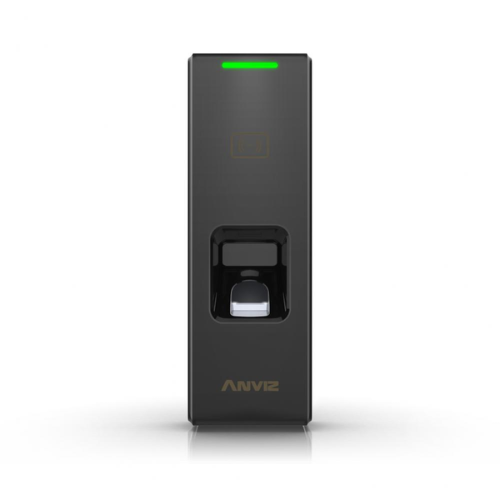

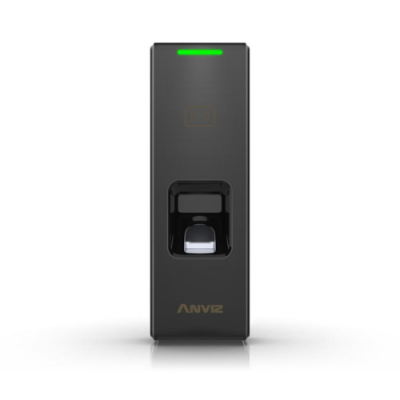

C2 Slim
C2 Slim is the most compact access control device controller which suitable for installing on door frame. It is combined with biometric fingerprint and RFID Card for higher security requirement. Management with master cards, can register or delete users under offline state. The PoE TCP/IP communication will provide more convenient for your project.
Description
Specifications
Specifications
| Product Name | C2 Slim |
| Identification Mode | Finger, Card |
| RFID Options | 125kHz EM & 13.56MHz MIFARE Card HID iCLASS (Optional) |
| Max. Users | 3,000 |
| Max. Cards | 3,000 |
| Max. Logs | 50,000 |
| Time Attendance Mode | – |
| Group, Time Zone | 16 groups, 32 time zones |
| Work Code | – |
| Short Message | – |
| WebServer | Yes |
| Record Auto Inquiry | – |
| Daylight Saving | Yes |
| Voice Prompt | Voice |
| Multiple Language | – |
| Software | CrossChex Standard |
| CPU | Linux 1.0 GHz |
| Sensor | AFOS Touch Active Sensor |
| Scanning Area | 22mm×18mm (0.87″×0.71″) |
| Display | – |
| Keypad | – |
| Dimensions(W x H x D) | 50×59×25mm (1.97″×2.26″×0.98″) |
| Working Temperature | -10°C~60°C (14°F~140°F) |
| Humidity | 20% to 90% |
| PoE | IEEE802.3af/at |
| Power Input | DC12V |
| IP Grade | IP65 |
| TCP/IP | Yes |
| RS232 | – |
| RS485 | Yes |
| USB Host | – |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Relay | Yes |
| I/O | Door Contact/ Exit Button |
| Tamper Alarm | Yes |
| Wiegand | IN & OUT |
